Selectable TDI or Area Mode of operation

The Piranha HS provides you with the flexibility to choose how you want to image. The area mode of operation facilitates camera set-up by allowing you to focus on a larger imaging area. You can also use area mode as your regular mode of operation. Other programmable features include number of taps, bit depth, flat field correction, direction control, stage selectability, and gain and offset control.

Time Delay Integration

Time delay integration speeds up imaging. This technology has become the standard in the automated inspection of flat panel displays.

Specifications

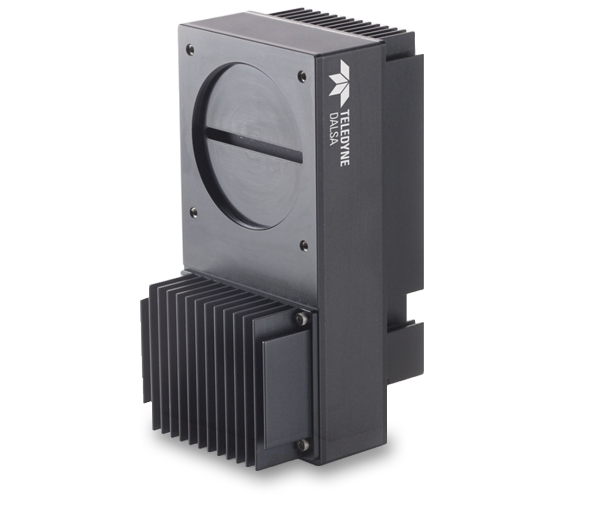

Family	Piranha HS
Partnumber	HS-80-08K40
Number of Pixels	8192 pixels
Number of Lines	96
Line Rate	34 kHz
Pixel Size	7 µm
Interface	Camera Link_Full
Chroma	Mono
Responsivity	117 DN/nJ/cm²
Dynamic Range	56 dB
Sensor size(Image Circle)	57.34 mm
Sensor type	CCD
Mount	M72 x 0.75
Size	150 x 80 x 65 mm
Maker	Teledyne Dalsa
