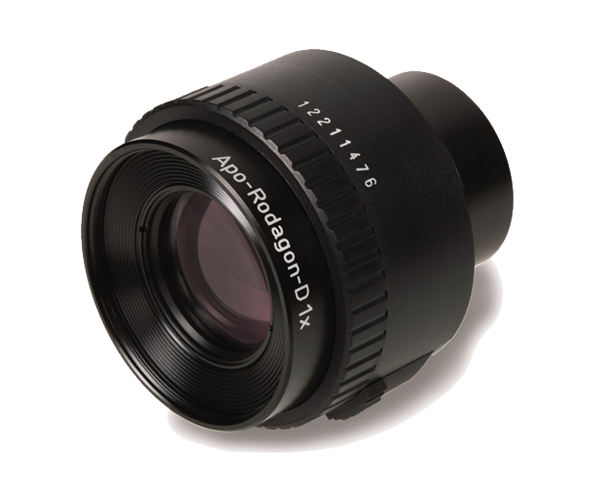

High-Performance Lenses for Large Imaging Sensors

The high resolution of the Apo-Rodagon-D lenses makes them an optimum solution for cameras with a pixel size down to 7 μm. The high resolution is accompanied by ultra-low distortions and negligible color fringing. The lenses are optimized for a magnification range from 1:2 to 2:1.

The 6-element, apochromatically corrected lenses feature high contrast and sharpness right up to the picture corners with practically no color fringes.

Key features

- Specially designed for scanning applications

and large imaging sensors

- Optimized for 1:2 to 2:1 imaging

- Large image circle up to 102 mm

- Focal length: 75, 120 mm

- Magnification range: -0.33 ... -3.0

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop

or continuous with set screw

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

- Wide range of mechanical accessories

Specifications

Family	Apo-Rodagon
Partnumber	0703-005-000-40
Magnification range	0.8 ~ 1.2 x
Magnification	1.0 x
Image circle	82 mm
Focal length	74.9 mm
F/#	4
Wavelength	Visible
Type	Fixed focal length
Mount	M39
Maker	Qioptiq
