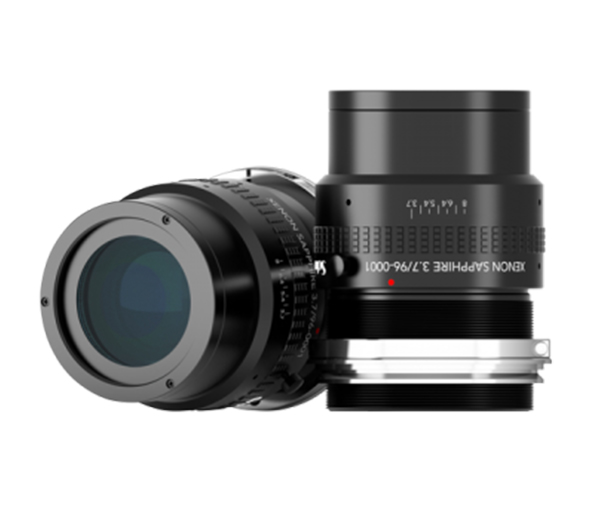

SAPPHIRE 0.03/0.29x V70 (구 Xenon-Sapphire)
Provides high performance at 100 LP/mm

Key features

- For 16k line scan cameras
(57.3 mm length/ pixel sizes 3.5 μm and 82 mm length/ pixel size approximately 5 μm)

- For 12k line scan cameras
(62.5 mm length/ pixel sizes approximately 5 μm)

- High resolution optics 400 - 1,000 nm

- Robust mechanics for industrial environmen

- Vibration insensitive

- Focus and iris setting lockable

Specifications

Family SAPPHIRE
Partnumber 1071818
Magnification range 0.27 ~ 0.32 x
Magnification 0.29 x
Image circle 62.5 mm
Focal length 95.5 mm
F/# 3.7 ~ 8
Wavelength Visible
Type Fixed focal length
Mount V70
Maker Schneider
