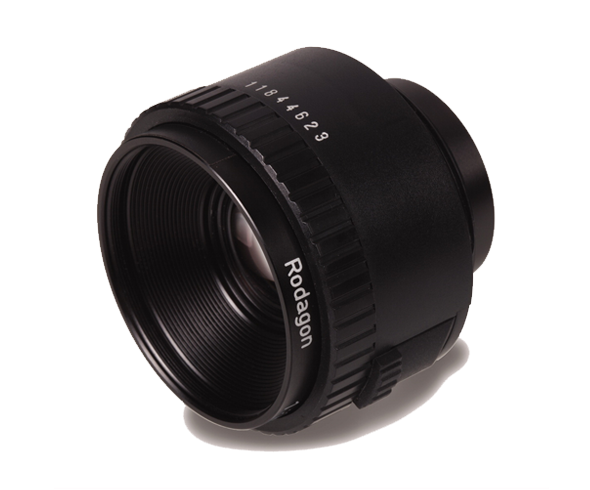

Rodagon

The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.

High-performance lens featuring a highly consistent imaging quality and broad magnification range.

Key features

- Suitable for line-scan cameras and large imaging sensors

- Large image circle up to 105 mm

- High numerical aperture

- Adapter available for all common camera interfaces

- Focal length: 28 ... 135 mm

- Magnification range: - 0.03 ... -0.5

- Spectral range: 400-750 nm

- Iris diaphragm: manual, click-stop

- Mount: M39x1/26" (Leica)

- Filter thread: M40.5x0.5

Specifications

Family	Rodagon
Partnumber	0701-391-000-40
Magnification range	0.06 ~ 0.5 x
Magnification	0.25 x
Image circle	62 mm
Focal length	81.1 mm
F/#	4
Wavelength	400 ~ 750
Type	Fixed focal length
Mount	M39
Maker	Qioptiq
