- enAF 400kHz 5x

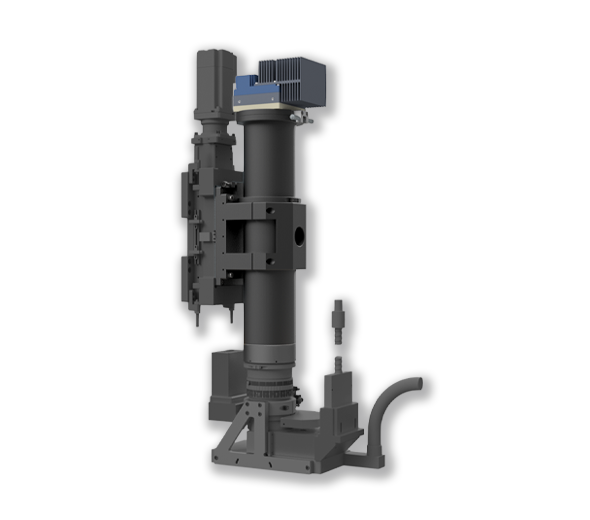

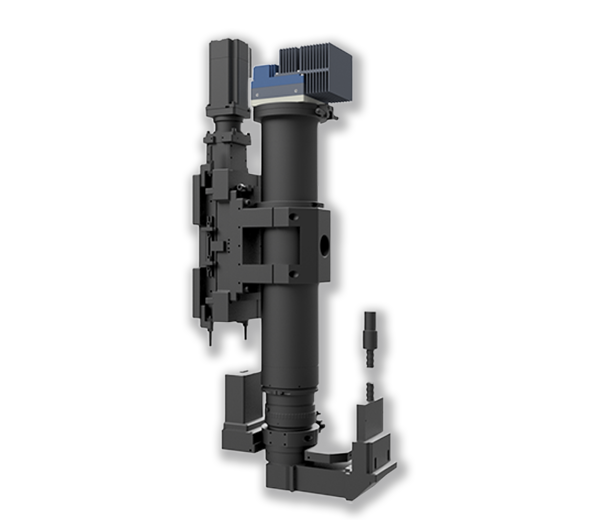

- 400kHz 5x용 앤비젼 개발 자동 초점 모듈
.
주요 사양
| Family | enAF 400kHz |
|---|---|
| Partnumber | EO-IM-KD500-009 |
| Sample Speed | 400 mm/s |
| Max Tracking Error | 2.5 µm |
| Min.DOF | ±3.8 µm |
| Magnification | 5.0 x |
| Focusing Range | 40 mm |
| PC Interface | Ethernet |
| Slope Condition | 20µm/50mm |
| Motion | Single Motion |
| 카메라 종류 | Line scan |
| 앤비젼 적용 카메라 | Linea HS 16k 400kHz |
| 앤비젼 적용 렌즈 | Kelly Diamond 5x |
