Linea HS 16k, 400kHz, CLHS CX4
400kHz의 초고속 TDI 16k 카메라

현존하는 TDI 라인스캔 카메라중
가장 높은 생산성을 제공하는 LineaHS 카메라를 소개합니다.

앤비젼에서 제공하는 Linea HS 16K는 최신 CMOS 기술이 적용된 TDI 카메라로 빠른 속도와 높은 감도, 낮은 노이즈 등 최고의 품질을 제공합니다. 또한, 다양한 이미징 조건을 구현한 영상 획득도 가능하여 검출력을 향상시킬수 있습니다.

현존 최고 속도 400kHz

The all new Linea HS™ delivers line rates up to 400 kHz at 16k resolution or up to 150 kHz at an incredible 32k resolution-over 5 Gpixels/sec via CLHS interface

Equipped for the Future

The Linea HS brings your imaging system the speed and power of the PCIe Gen 3 platform when paired with Xtium2. Leveraging the high efficiency of the CameraLink HS interface's X-protocol, the Xtium2 CLHS PX8 supports Active Optical Cable (AOC) and industry standard CX4 cables with up to 7-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 8.4 GBytes/s.

With slim, robust, and cost effective fiber optic cabling, Linea HS and Xtium2 allow cable lengths beyond 100 meters to enable the newest and most demanding vision applications.

Typical Applications

The Linea HS enables high speed and high sensitivity imaging in light starved conditions like these


- FPD Inspection

- PCB Inspection

- Wafer Inspection

- Gene Sequencing

- Digital Pathology



If you need maximum throughput in the toughest conditions, you need Linea HS.

주요 사양

Family Linea HS

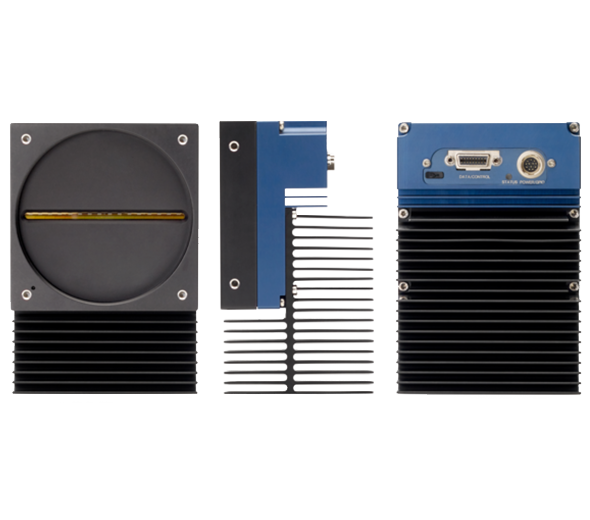

Partnumber HL-HM-16K40H-00-R
Number of Pixels 16384 pixels
Number of Lines 192
Line Rate 400 kHz
Pixel Size 5 µm
Interface Camera Link HS CX4
Chroma Mono
Responsivity 500 DN/nJ/cm²
Dynamic Range 67 dB
Sensor size(Image Circle) 81.92 mm
Sensor type CMOS
Mount M90 x 1
Size 97 x 140.5 x 78.6 mm
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
카달로그 [2024년] 앤비젼 전제품 카달로그 다운로드
데이터시트 [2021년] Linea HS 8k / 13k / 16k Datasheet 다운로드
매뉴얼 Linea HS series Manual 다운로드
3D 도면 Linea ML & HS 16k 3D Model (STEP) 다운로드

관련 제품

동영상

HDR & High fullwell기능으로 검출력을 높일 수 있는 LineaHS 16k

앤비젼에서 제공하는 LineaHS 16k 시리즈는 여러 개의 TDI 센서 array를 이용해서 매우 다양한 기능을 구현하고 있습니다. 특히 LineaHS 16k mono 카메라는 HDR기능이 가능하여 밝기차이가 심한 영상을 한번에 출력할 수 있고, High fullwell 기능을 통해 노이즈가 최소화된 영상을 획득하여 검출력을 향상시킬수 있습니다.
