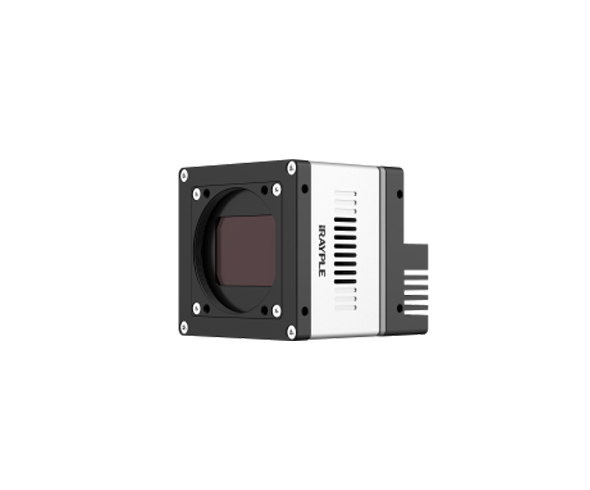

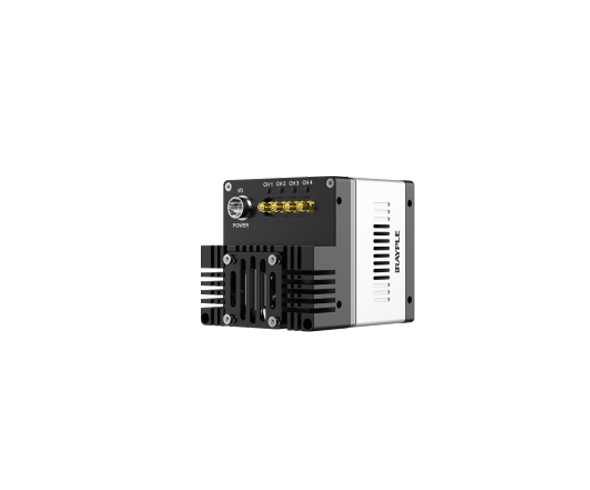

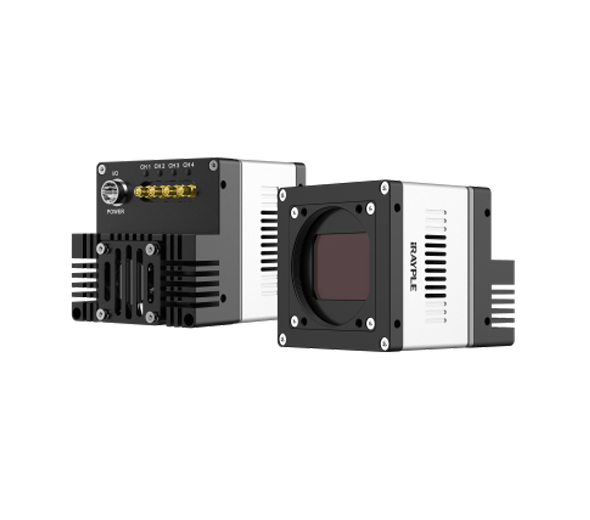

- HuaRay iRAYPLE 25M Color, CXP-12
- 25M CXP camera that delivers video at high speed and at a reasonable cost
Technical features
- CXP-12 interface, 4*12.5Gbps theoretical transfer bandwidth
- Support hardware trigger/free run mode
- Support FFC
- Support multiple image data formats output, ROI and etc.
- Conforms to CoaXPress protocol and GenICam standard
- Support PoCXP and DC 24V power supply
- Conform to CE, FCC, UL and RoHS
Application Industry
- Railway industry
- LCD
- Panel inspection and other industrial inspection and science research
Specifications
| Family | iRAYPLE |
|---|---|
| Partnumber | A9B57CP050E(KEH-25PC0) |
| Resolution | 26.2 Megapixel |
| Resolution(H*V) | 5120 x 5120 pixel |
| Sensor | Gpixel GMAX 0505 |
| Sensor size(Image Circle) | 18.1 mm |
| Sensor Format(Inch) | 1.1" |
| Turbodrive Frame Rate | |
| Frame Rate | 150 fps |
| Pixel Size | 2.5 μm |
| Interface | CoaXPress (CXP-12) |
| Chroma | Color |
| Readout Method | Global |
| Dynamic Range | 63 dB |
| Sensor type | CMOS |
| Mount | M58 |

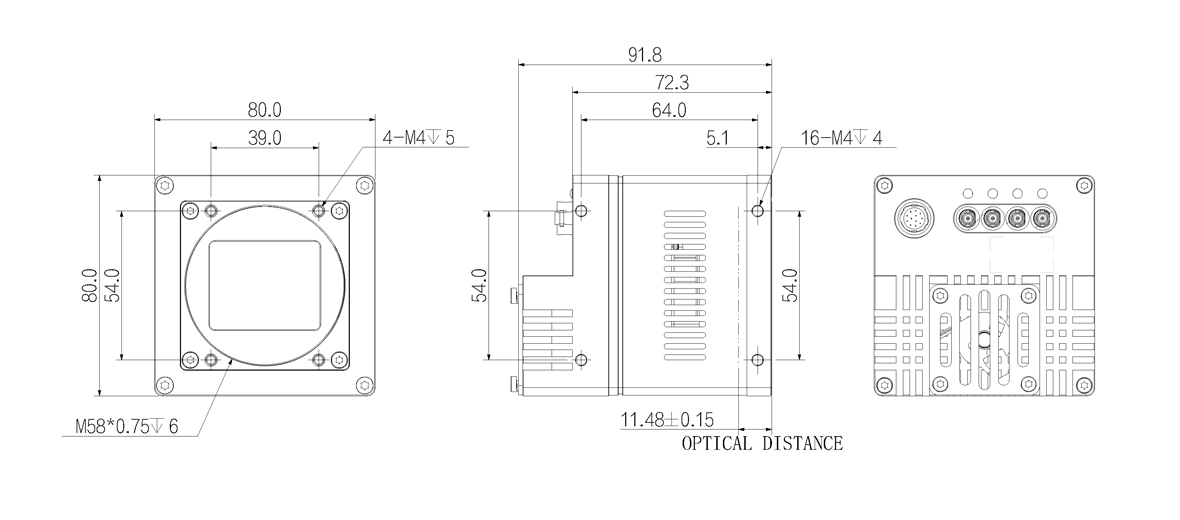

| Size | 80 x 80 x 72 mm |
| Maker | Huaray |
