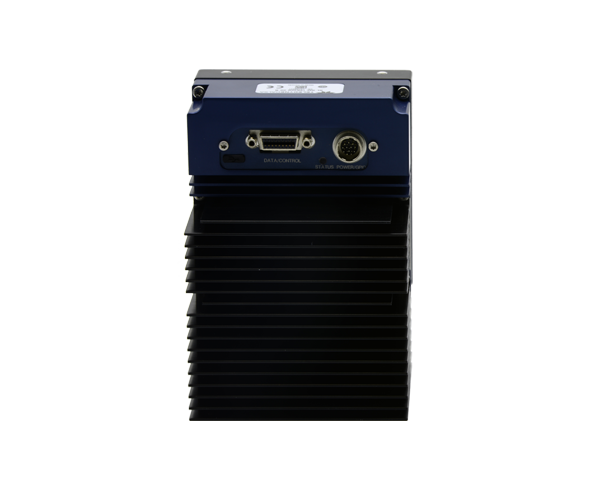

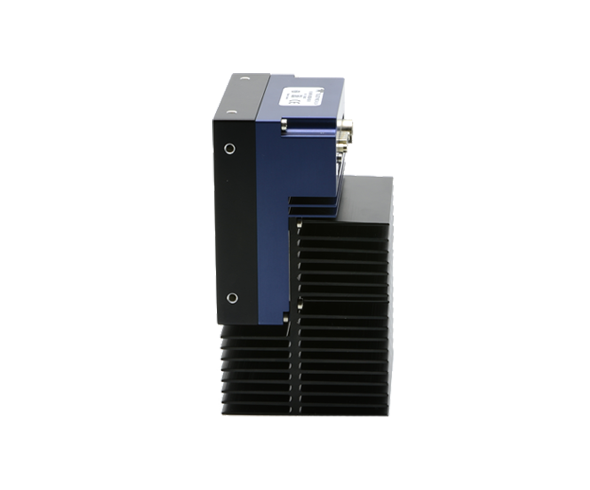

CHARGE-DOMAIN CMOS TDI LINE SCAN
UNPARALLELED PERFORMANCE

Building on Teledyne DALSA’s heritage in CCD TDI,
the new CMOS TDI technology in our Linea HS is the most advanced in the marketplace.

Packed with powerful features

The Linea HS cameras deliver the highest performance available, with unique features that significantly improve detectability for many demanding applications.

- HDR Imaging

- Sychronized IO to control external lighting

from the camera

- Fiber optic cables up to 100 m

Equipped for the Future

The Linea HS brings your imaging system the speed and power of the PCIe Gen 3 platform when paired with Xtium2.Leveraging the high efficiency of the CameraLink HS interface's X-protocol, the Xtium2 CLHS PX8 supports Active Optical Cable (AOC) and industry standard CX4 cables with up to 7-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 8.4 GBytes/s.

With slim, robust, and cost effective fiber optic cabling, Linea HS and Xtium2 allow cable lengths beyond 100 meters to enable the newest and most demanding vision applications.

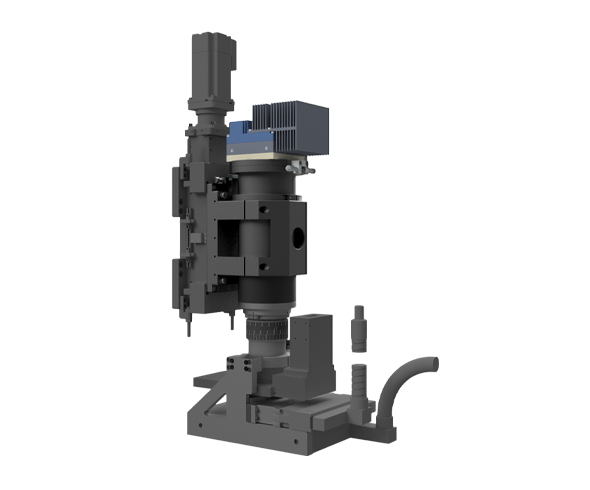

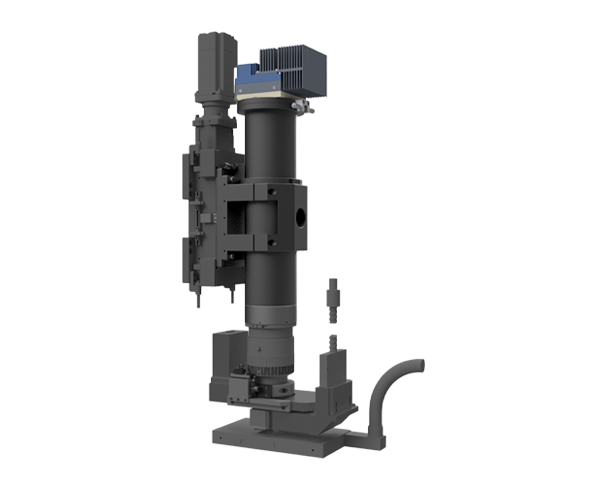

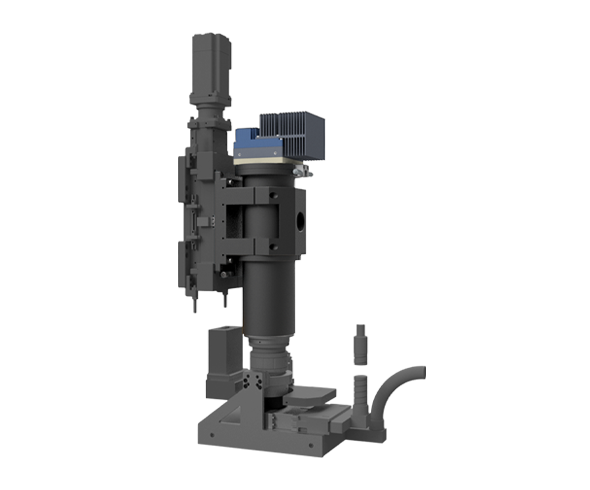

Typical Applications

The Linea HS enables high speed and high sensitivity imaging in light starved conditions like these

- FPD Inspection

- PCB Inspection

- Wafer Inspection

- Gene Sequencing

- Digital Pathology

If you need maximum throughput in the toughest conditions, you need Linea HS.

Specifications

Family	Linea HS
Partnumber	HL-HM-16K40H-00-R
Number of Pixels	16384 pixels
Number of Lines	192
Line Rate	400 kHz
Pixel Size	5 µm
Interface	Camera Link HS CX4
Chroma	Mono
Responsivity	500 DN/nJ/cm²
Dynamic Range	67 dB
Sensor size(Image Circle)	81.92 mm
Sensor type	CMOS
Mount	M90 x 1
Size	97 x 140.5 x 78.6 mm
Maker	Teledyne Dalsa
