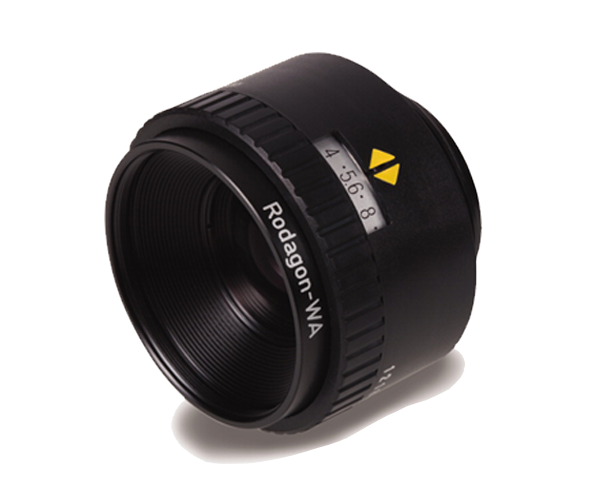

- Rodagon WA 4/40
- High-performance lens with extended-field viewing angle
Rodagon-WA
The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.High-performance lens with extended-field viewing angle and a large resulting image circle.
Key features
- Suitable for line-scan cameras and large imaging sensors
- Large image circle up to 105 mm
- High numerical aperture
- Adapter available for all common camera interfaces
- Magnification range: - 0.03 ... -0.5
- Spectral range: 400-750 nm
- Iris diaphragm: manual, click-stop
- Mount: M39x1/26" (Leica)
- Filter thread: M40.5x0.5
Specifications
| Family | Rodagon |
|---|---|
| Partnumber | 0701-399-000-40 |
| Magnification range | 0.066 ~ 0.25 x |
| Magnification | 0.1 x |
| Image circle | 46 mm |
| Focal length | 40.4 mm |
| F/# | 4 |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Mount | M39 |
| Maker | Qioptiq |
