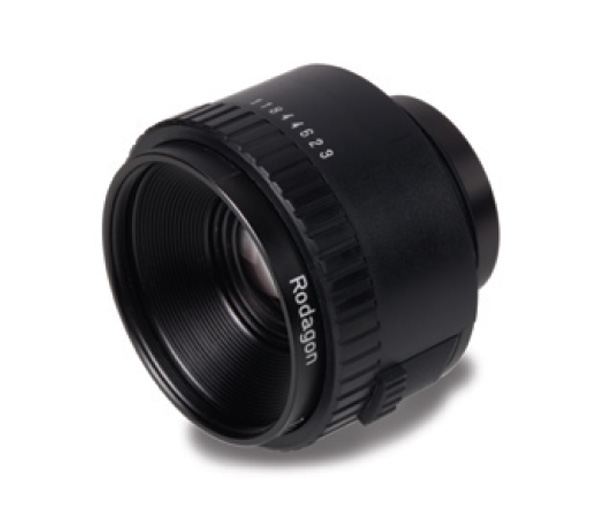

- Rodagon 4/60
- High-performance lens featuring a highly consistent imaging quality
The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.
Rodagon
High-performance lens featuring a highly consistent imaging quality and broad magnification range.
Rodagon
High-performance lens featuring a highly consistent imaging quality and broad magnification range.
Key features
- Suitable for line-scan cameras and large imaging sensors
- Large image circle up to 105 mm
- High numerical aperture
- Adapter available for all common camera interfaces
- Focal length: 28 ... 135 mm
- Magnification range: - 0.03 ... -0.5
- Spectral range: 400-750 nm
- Iris diaphragm: manual, click-stop
- Mount: M39x1/26" (Leica)
- Filter thread: M40.5x0.5
Specifications
| Family | Rodagon |
|---|---|
| Partnumber | 0701-393-000-40 |
| Magnification range | 0.06 ~ 0.5 x |
| Magnification | 0.25 x |
| Image circle | 56 mm |
| Focal length | 62 mm |
| F/# | 4 |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Mount | M39 |
| Maker | Qioptiq |
