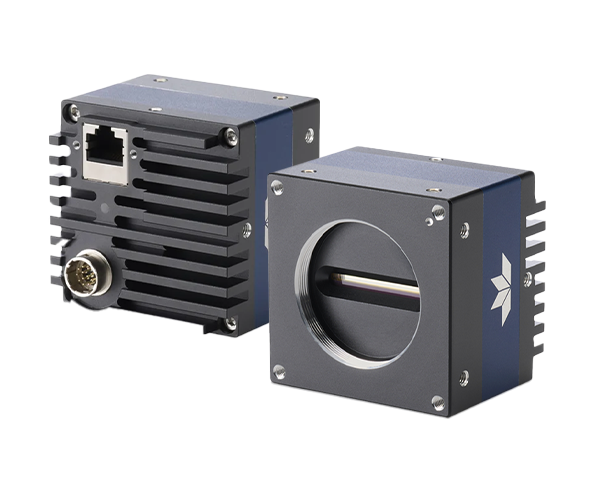

- Tetra Mono 8K Super resolution, 82kHz, 10GigE
- 합리적인 가격의 10GigE Line Scan 카메라
3.5µm Super Resolution 픽셀 사이즈의
초고해상도 8K 카메라를 소개합니다.
Cost-Effective Performance
The Tetra camera family offers a high performance-to-cost ratio through its 2.5/10 GigE Vision interface, which provides 2.5/10x bandwidth of GigE in data transmission over long cable lengths. Available in 2k, 4k, and 8k resolutions, the camera comes in both monochrome or color versions, with power consumption of under 6 watts. Monochrome models deliver excellent image quality with options for single line monochrome or dual line HDR mode, while the color models provide true trilinear red, green and blue colors without any data interpolation.
Includes Essential Line Scan Features
Tetra includes essential line scan features such as multiple regions of interest, programmable coefficient sets, and Power over Ethernet. Its 2.5/10 GigE Vision interface makes it ideal for applications such as electronics inspection, optical sorting, printed materials inspection, packaging inspection, web inspection and general machine vision.
주요 사양
| Family | Tetra |
|---|---|
| Partnumber | TL-GC-08K08S-00 |
| Number of Pixels | 8192 pixel |
| Number of Lines | 1 |
| Line Rate | 82 kHz |
| Pixel Size | 3.5 μm |
| Interface | 10GigE |
| Spectrum | Mono |
| Responsivity | 12 DN/nJ/cm2(8bit@최소게인) |
| Dynamic Range | 71 dB |
| Sensor size(Image Circle) | 28.67 mm |
| Sensor type | CMOS |
| Mount | M42 x 1 |
| Size | 62 x 62 x 50 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2026년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2025년] Tetra Mono 2.5/10GigE Datasheet(ENG) | |
| 매뉴얼 | [2026년] Tetra Mono/Color 2.5/10GigE Manual | |
| 3D 도면 | [2026년] Tetra Mono/Color 2.5/10GigE 3D model(STEP) | |
| 3D 도면 | [2025년] Tetra Mono/Color 2.5/10GigE 3D model(DWG) | |
