- enAF 1MHz 5x

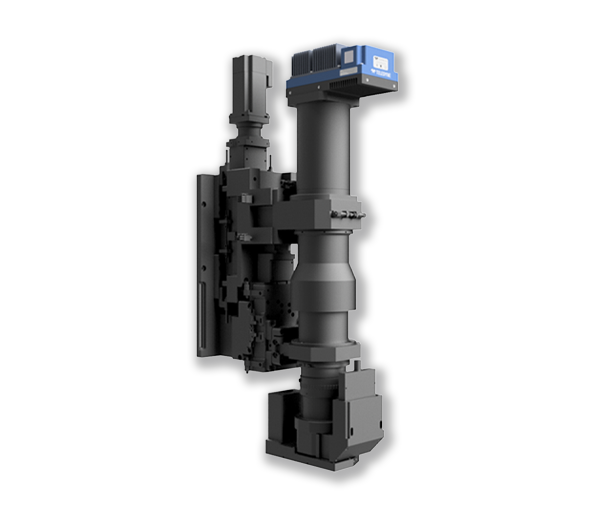

- 1MHz 5x용 앤비젼 개발 자동 초점 모듈
.
주요 사양
| Family | enAF 1MHz |
|---|---|
| Partnumber | EO-IM-KD500-018 |
| Sample Speed | 1000 mm/s |
| Max Tracking Error | 2.7 µm |
| Min.DOF | ±4.5 µm |
| Magnification | 5.0 x |
| Focusing Range | 20 mm |
| PC Interface | Ethernet |
| Slope Condition | 20µm/50mm |
| Motion | Dual Motion |
| 카메라 종류 | Line scan |
| 앤비젼 적용 카메라 | Linea HS2 16k 1MHz |
| 앤비젼 적용 렌즈 | Kelly Diamond 5x High-speed |
