Industry's first linescan polarization camera: making the invisible visible.

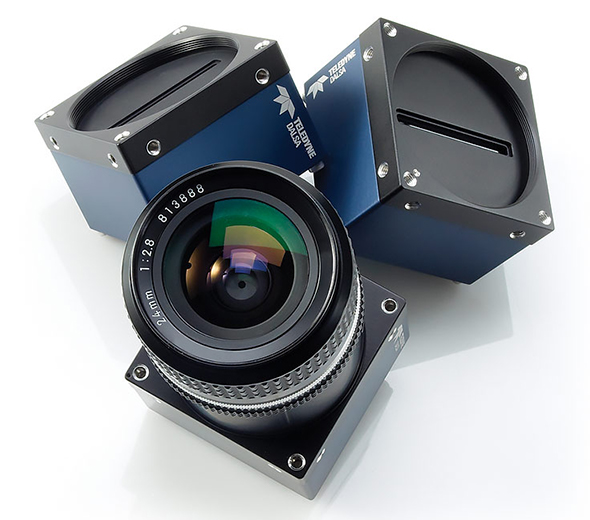

The Piranha4 Polarization™ camera is a breakthrough in the machine vision industry. This high-speed polarization camera features three native polarization states plus an unfiltered channel.

The Piranha4 polarization camera extends detection capability in machine vision and is ideal for detecting stresses, surface roughness, film thickness, alloy composition, and 3D profiles.

Feature Highlights

•Three native polarization states plus an unfiltered channel •Line rates up to 70 kHz •Bi-directional •Compact camera body •Sub-pixel spatial correction •Horizontal parallax correction •Multiple regions of interest for calibration and data reduction •8, 10, or 12-bit output •Flat field and lens shading correction •GenICan or ASCII-compliant interfacing

Polarization

Line scan polarization cameras detect birefringence, stress, surface roughness, and physical properties unseen by conventional imaging. To learn more, read "Focus on Polarization: Quadlinear Line Scan Camera Detects Multiple Polarization States" by Teledyne DALSA, published in Photonics Spectra July 2016.

Specifications

Family	Piranha4
Partnumber	P4-CP-02K07Q
Number of Pixels	2048 pixel
Number of Lines	4
Line Rate	70 kHz
Pixel Size	14.08 μm
Interface	Camera Link_Full
Chroma	Mono
Responsivity	22(polarized) 60(unfiltered) DN/nJ/cm2(8bit@최소게인)
Dynamic Range	60 dB
Sensor size(Image Circle)	28.84 mm
Sensor type	CMOS
Mount	M42 x 1/ F
Size	62 x 62 x 48 mm
Maker	Teledyne Dalsa
