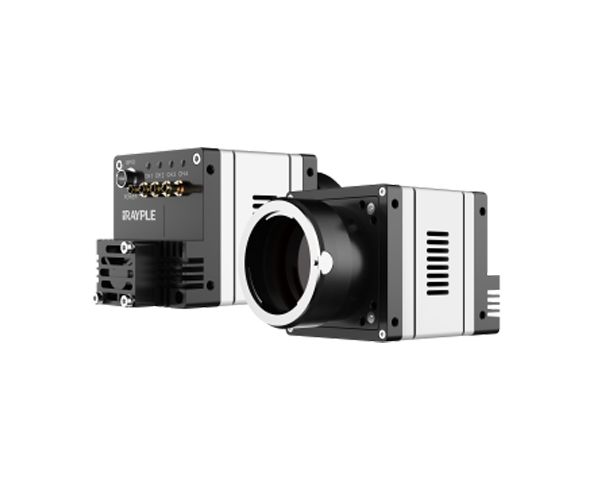

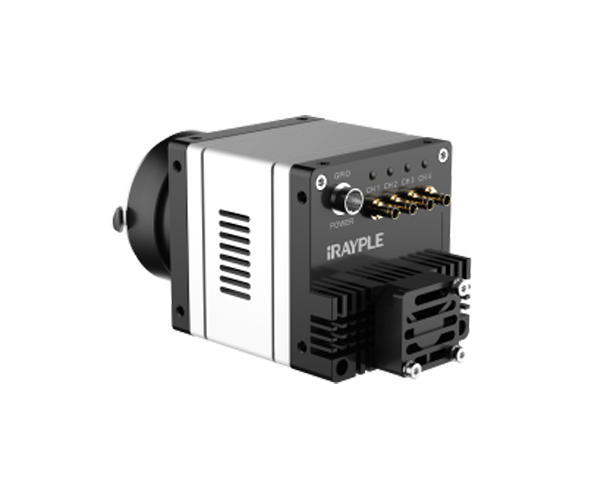

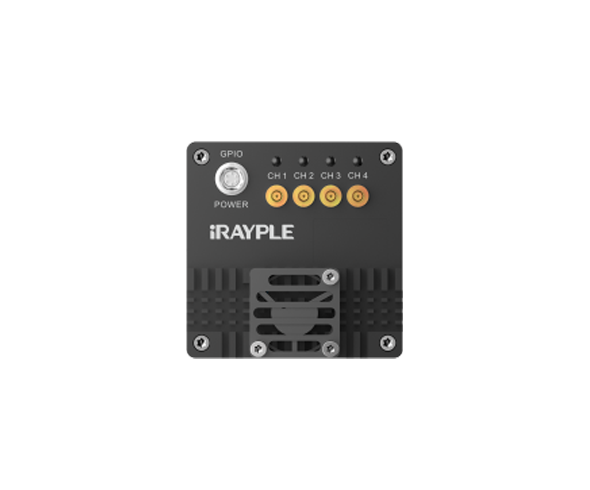

- HuaRay iRAYPLE 12.6M Color, CXP(F)
- Affordable coaxpress camera for fast productivity.
Technical features
- CoaXPress applies CXP-6 with a theoretical 4x6.25GB bandwidth
- External trigger / Free run mode
- Support edge enhancement,noise reduction ,gamma correction ,black level correction ,LUT,etc
- PoCXP/ support DC24V wide-range power supply
- Support multiple image data formats,ROI,etc
- Conform to CE,FCC,UL and RoHS certifications
- Conform to CoaXPress protocol and GenICam standard
Application Industry
- Railway industry
- LCD
- Panel inspection and other industrial inspection and science research
Specifications
| Family | iRAYPLE |
|---|---|
| Partnumber | AX5A22CX060E(KEH-12XC2) |
| Resolution | 12.6 Megapixel |
| Resolution(H*V) | 4096 x 3072 pixel |
| Sensor | AMS CMV12000 |
| Sensor size(Image Circle) | 28.16 mm |
| Sensor Format(Inch) | |
| Turbodrive Frame Rate | |
| Frame Rate | 188 fps |
| Pixel Size | 5.5 μm |
| Interface | CoaXPress (CXP-6) |
| Chroma | Color |
| Readout Method | Global |
| Dynamic Range | 60 dB |
| Sensor type | CMOS |
| Mount | F |
| Size | 72 x 72 x 72 mm |
| Maker | Huaray |
