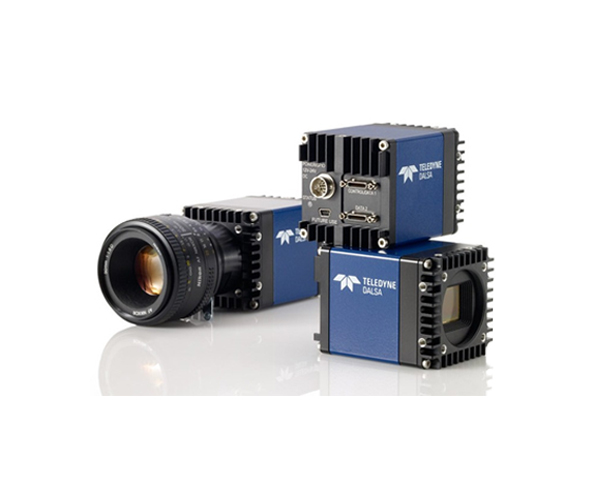

Falcon2 12M Mono, Mini CL
CMOS camera that satisfies all aspects such as speed/resolution/image quality

It all starts with the sensor

The Falcon2 series is Teledyne DALSA's latest high-performance area camera family. Featuring our latest CMOS technology for high speed, high resolution imaging with true global shutter operation, the Falcon2 cameras deliver high quality images of fast-moving objects without smear or distortion.

It continues with the camera

Teledyne DALSA's Falcon2 cameras also provide an extensive feature set including programmable exposure time via Camera Link interface or additionally by external hardware signals, and selectable aspect ratios (4:3 and 1:1). Wrapped in a remarkably compact, rugged, thermally efficient body that has been optimized for industrial applications, the Falcon2 cameras deliver outstanding performance and value.

Remarkably rugged with an extensive feature set

· High resolution and frame rate

· Superior image quality

· Reduced dark noise levels and improved dark offset

· Improved sensitivity

· In-camera image pre-processing (flat field correction)

· Global shutter imaging to crisply capture moving objects

· Selectable 4:3 or 1:1 aspect ratios while maintaining the same resolution (for 8M and 4M models)

· Color models available

· Customizable user settings

· Rugged and reliable

Specifications

Family Falcon2
Partnumber FA-80-12M1H
Resolution 12.6 Megapixel
Resolution(H*V) 4096 x 3072 (4:3) pixel
Sensor Teledyne DALSA CMOS
Sensor size(Image Circle) 30.72 mm
Sensor Format(Inch)
Turbodrive Frame Rate
Frame Rate 58 fps
Pixel Size 6 μm
Interface Mini Camera Link
Chroma Mono
Readout Method Global
Dynamic Range 58 dB
Sensor type CMOS
Mount M42 x 1/ F
Size 60 x 60 x 80.5 mm
Maker Teledyne Dalsa
