Smaller, faster, stronger, cheaper.
Better in every way that matters.

Introducing Genie Nano, a CMOS area scan camera that redefines low cost performance. Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, and an unmatched feature set－－all at an incredible price.

Latest generation CMOS technology.

Genie Nano is designed to use a range of leading CMOS image sensors, including models from Sony's Pregius and ON Semiconductor's Python lines. With resolutions from VGA to 25 megapixels, the Nano delivers high speed, low noise, and global shutters.

Exploit more speed with your existing infrastructure

With the latest high performance CMOS image sensors, Genie Nano CL lets you take advantage of higher frame rates, higher resolution, and higher performance without having to change the rest of your existing Camera Link system infrastructure. You can keep your existing frame grabbers, cables, and application code, leveraging your existing investment to new levels of performance.

Specifications

Family	Genie Nano
Partnumber	G3-CC10-C4095
Resolution	16.8 Megapixel
Resolution(H*V)	4096 x 4096 pixel
Sensor	OnSemi PYTHON 16K
Sensor size(Image Circle)	26.07 mm
Sensor Format(Inch)	APS-H
Turbodrive Frame Rate
Frame Rate	46.8 fps
Pixel Size	4.5 μm

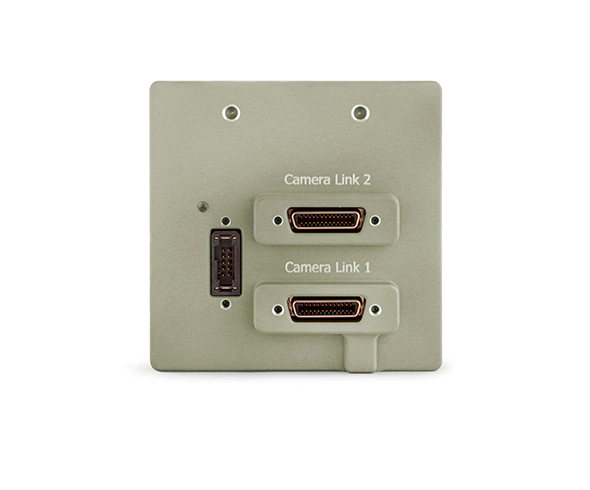

Interface	Camera Link
Chroma	Color
Readout Method	Global
Dynamic Range	55.3 dB
Sensor type	CMOS
Mount	M42
Size	59 x 59 x 30 mm
Maker	Teledyne Dalsa
