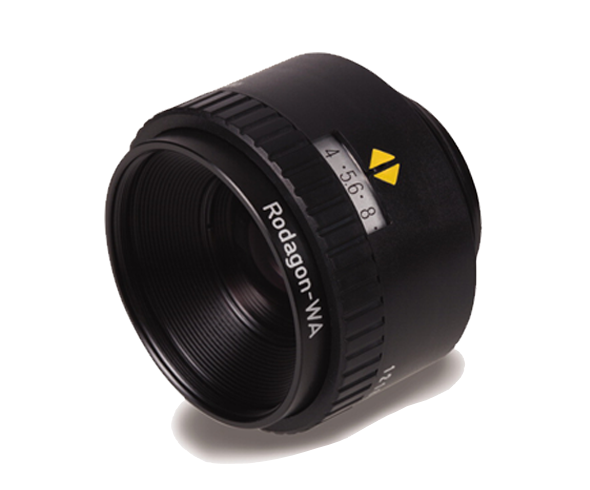

- Rodagon WA 4/40
- 동일한 이미지 필드에서 확장된 시야각 및 짧은 초점 거리를 가진 고성능 렌즈
Rodagon-WA
The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality. They sharply reproduce images all the way to the very edges of the object.High-performance lens with extended-field viewing angle and a large resulting image circle.
Key features
- Suitable for line-scan cameras and large imaging sensors
- Large image circle up to 105 mm
- High numerical aperture
- Adapter available for all common camera interfaces
- Magnification range: - 0.03 ... -0.5
- Spectral range: 400-750 nm
- Iris diaphragm: manual, click-stop
- Mount: M39x1/26" (Leica)
- Filter thread: M40.5x0.5
광학계산기
Large format 렌즈의 배율, F/# 입력을 통해
유용한 정보를 얻을 수 있습니다.
1) Back Focal Length
2) Working Distance
3) Total Track
4) DOF
주요 사양
| Family | Rodagon |
|---|---|
| Partnumber | 0701-399-000-40 |
| Magnification range | 0.066 ~ 0.25 x |
| Magnification | 0.1 x |
| Image circle | |
| Focal length | 40.4 mm |
| F/# | 4 |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Mount | M39 |
| Maker | Excelitas |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | Apo-Rodagon/Rodagon Brochure ncluding mechanical accessoiries (eng) | |
| 데이터시트 | Rodagon WA 40 Datasheet | |
| 3D 도면 | Rodagon WA 40 Lens 3D model (STEP) | |
| 3D 도면 | Rodagon WA 40 full metal Lens 3D model (STEP) | |
