- Apo-Rodagon N 4/80
- 다양한 배율 범위에서 가장 높은 요구 사항을 충족하도록 설계된 색수차 및 구면 수차를 없앤 렌즈

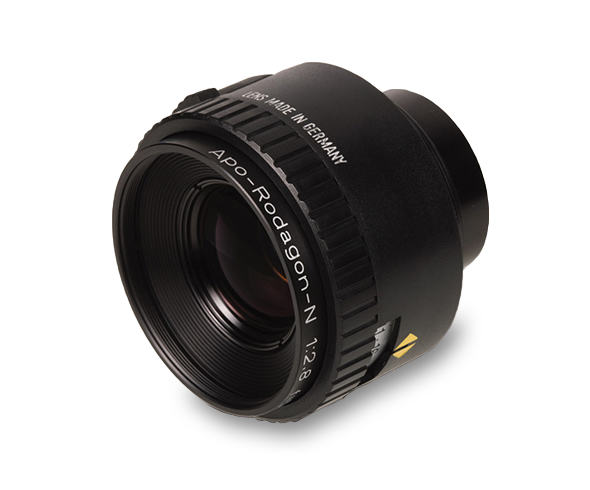

Apo- Rodagon-N
The Linos measuring lenses developed by Qioptiq feature the highest resolution, excellent contrast, minimum distortion and color neutrality.Lenses produce crisp, sharp images to the extreme edges of the object.
Apochromatically corrected lens designed to meet the highest requirements in an especially broad magnification range.
Key features
- Suitable for line-scan cameras and large imaging sensors
- Large image circle up to 100 mm
- High numerical aperture
- Adapter available for all common camera inter faces
- Focal length: 50 ... 105 mm
- Magnification range: -0.05 ... -0.5
- Spectral range: 400-750 nm
- Iris diaphragm: manual, click-stop or continuous with set screw
- Mount: M39x1/26" (Leica)
- Filter thread: M40.5x0.5
- Wide range of mechanical accessories
광학계산기
Large format 렌즈의 배율, F/# 입력을 통해
유용한 정보를 얻을 수 있습니다.
1) Back Focal Length
2) Working Distance
3) Total Track
4) DOF
주요 사양
| Family | Apo-Rodagon N |
|---|---|
| Partnumber | 0703-092-000-40 |
| Magnification range | 0.067 ~ 0.5 x |
| Magnification | 0.1 x |
| Image circle | 86 mm |
| Focal length | 83.5 mm |
| F/# | 4 |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Mount | M39 |
| Maker | Qioptiq |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2024년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Apo-Rodagon N 80 Datasheet | |
| 3D 도면 | Apo-Rodagon N 80 Lens 3D model (STEP) | |
