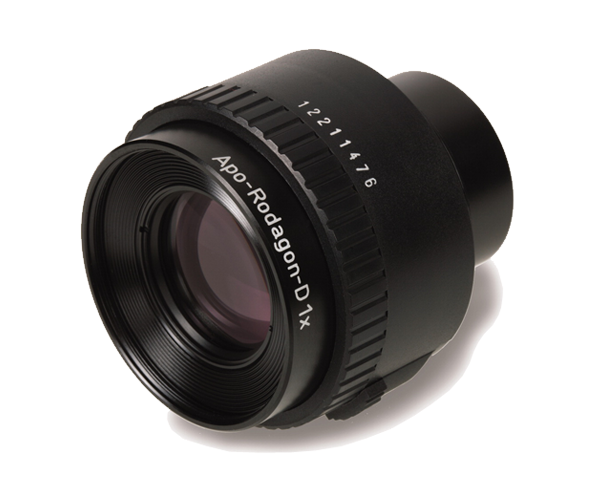

- Apo-Rodagon D 5.6/120 0.5x
- line scan 카메라에 특화된 높의 가성비의 저가형 렌즈
High-Performance Lenses for Large Imaging Sensors
The high resolution of the Apo-Rodagon-D lenses makes them an optimum solution for cameras with a pixel size down to 7 μm. The high resolution is accompanied by ultra-low distortions and negligible color fringing. The lenses are optimized for a magnification range from 1:2 to 2:1.
The 6-element, apochromatically corrected lenses feature high contrast and sharpness right up to the picture corners with practically no color fringes.
The 6-element, apochromatically corrected lenses feature high contrast and sharpness right up to the picture corners with practically no color fringes.
Key features
- Specially designed for scanning applications
and large imaging sensors
- Optimized for 1:2 to 2:1 imaging
- Large image circle up to 102 mm
- Focal length: 75, 120 mm
- Magnification range: -0.33 ... -3.0
- Spectral range: 400-750 nm
- Iris diaphragm: manual, click-stop
or continuous with set screw
- Mount: M39x1/26" (Leica)
- Filter thread: M40.5x0.5
- Wide range of mechanical accessories
광학계산기
Large format 렌즈의 배율, F/# 입력을 통해
유용한 정보를 얻을 수 있습니다.
1) Back Focal Length
2) Working Distance
3) Total Track
4) DOF
주요 사양
| Family | Apo-Rodagon |
|---|---|
| Partnumber | 0703-043-000-20 |
| Magnification range | 0.33 ~ 0.8 x |
| Magnification | 0.5 x |
| Image circle | 102 mm |
| Focal length | 119.9 mm |
| F/# | 5.6 |
| Wavelength | Visible |
| Type | Fixed focal length |
| Mount | M39 |
| Maker | Qioptiq |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2024년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | Apo-Rodagon / Rodagon / Rogonar-s Brochure (한글) | |
| 데이터시트 | Apo Rodagon D 120 Datasheet | |
| 3D 도면 | Apo Rodagon D 120 Lens 3D model (STEP) | |
