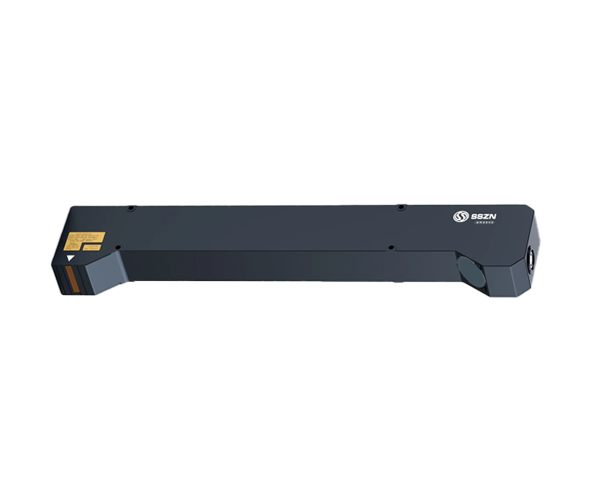

SR5540(3.2K, 460mm, GigE)
High-speed 67kHz laser profiler

Specifications

Family SR series
Partnumber SR5540
Technique Laser Profiler
Min.FOV 385 mm
Max.FOV 620 mm
Measuring Range 460 mm
Max.Measurement Speed 67 kHz
Points per profile 3200
Max.Optical Resolution 200 μm
Repeatability 8 μm
Linearity 0.02 %
Reference Distance 730 mm
Wavelength 450
Interface 1 GigE
Maker SinceVision
Dimension 608 x 98.5 x 62 mm
